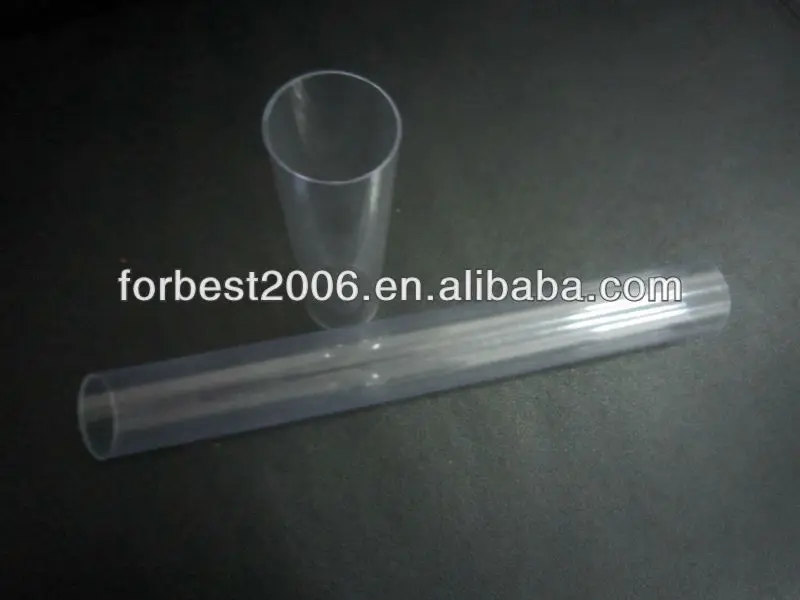

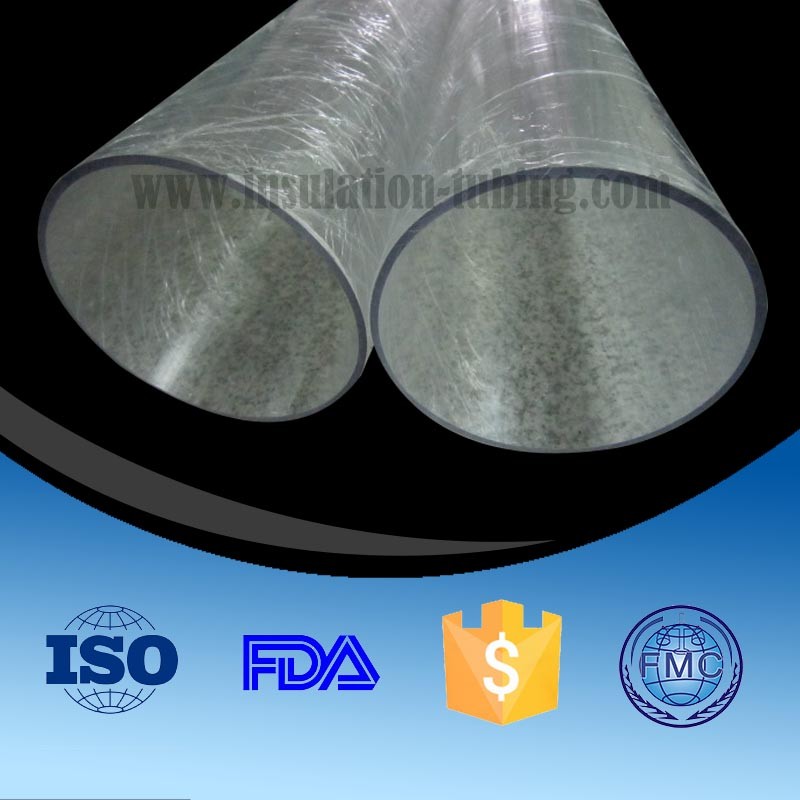

Acrylic Transparent Hard PVC Tube Large Diameter Rigid PVC Pipe

FOB Reference Price:Get Latest Price
$0.50 - $1.50 / Meter | 200 Meter/Meters , PVC Hard Pipe (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
FBS
Model Number:
Transparent pvc tube/tubing
Material:
PVC, 100% pvc raw material
Thickness:
available, 0.2-5mm
Specification:
Customized
Length:
available
Standard:
available, SGS ,RoHS, ISO9001
Size:
1-300mm outside diameter
Item:
Transparent pvc tube/tubing
Sample:
Free
Target market:
worldwide
Color:
Transparent
Name:
Acrylic Transparent Hard PVC Tube Large Diameter Rigid PVC Pipe
Supply Ability
Supply Ability:
1000000 Meter/Meters per Month , PVC Hard Pipe
Packaging & Delivery
Packaging Details
Standard Export Carton Packing
Port
Shenzhen
Lead Time :
15-20days after order confirmed

Acrylic Transparent Hard PVC Tube Large Diameter Rigid PVC Pipe

Product Description

Flexible PVC tubing offers a wide range of chemical and corrosion resistance, excellent abrasion and wear resistance, rubber-like flexibility, visual contact with the flow (clear pvc tubing and hose styles), and outstanding flow characteristics.



These include general industrial, food, pharmaceutical and medical, chemicals, fuels, oils, and mechanical applications including protective coverings and insulation sleeving.


Most of forbest manufacturing Co.ltd’s PVC tubing can be produced in custom sizes, colors, and shapes, and can be cut, printed, or thermally bonded.

Acrylic Transparent Hard PVC Tube Large Diameter Rigid PVC Pipe

Specification

PVC hard tube

  SPECIFICATION (ID *OD ) In mm

SPECIFICATION (ID *OD ) in mm

1*2

16*20

2*4

17*21

3*6

18*22

4*8

19*23

5*8

20*24

6*10

30*34

7*11

40*44

8*12

50*54

9*13

60*64

10*14

70*74

11*15

100*104

12*16

110*114

13*17

150*154

14*18

200*204

15*20

300*304

Main properties

Property of pvc pipe



Item

Test Standard

Test Method

Test Result

1

Appearance

Clean, Smooth, Transparent, No Bubble

Visual Inspection

Pass

2

Aging Test

168Hrs@136℃ without aging

Aging Box

Pass

3

Insulation Resistance

DC 500V, Insulation Resistance R≥200MΩ

Insulation Tesistance Tester

Pass

4

Dielectric Withstand Voltage Test

AC 2500V/Min (5mA)
No Breakdown

Dielectric Withstand Voltage Tester

Pass

5

Corrosion Resistance

Company standard: Q/HT-2004

Corrosion Device

Pass

6

Flammability Standard

UL 94V-0

Flame Burning

Pass



Material Report

 Acrylic Transparent Hard PVC Tube Large Diameter Rigid PVC Pipe

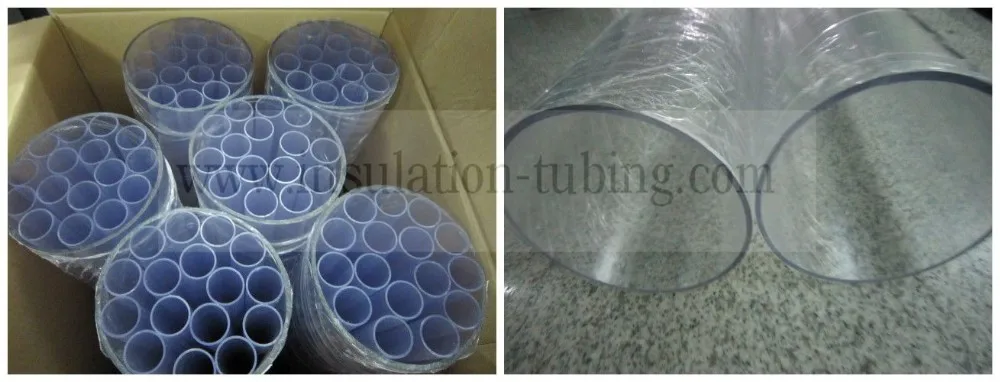

Packing&Delivery

 Packing details :Standard Export Carton Packing



 Delivery detail :15-20days after order confirmed

Acrylic Transparent Hard PVC Tube Large Diameter Rigid PVC Pipe





Payment&Shipping

 Acrylic Transparent Hard PVC Tube Large Diameter Rigid PVC Pipe



Company Information

About factroy

We are one of the most professional insulation tubing and products manufacturer in China.
Our products including latex tubing,EPDM tubing,EPDM sponge tubing/sheet/strip/rod/extrusion,
silicone tubing,silicone sponge sheet/strip/rod/extrusion, silicone sponge tube,Silicone Fiberglass tubing,
PVC tubing,heat shrink tubing,Teflon/PTFE tubing,convoluted/corrugated tubing, silicone O ring etc.



We will provide you the products with competitve prices and good quality.

Samples can be made if you need and trial order also welcome, please contact us freely.
